Description

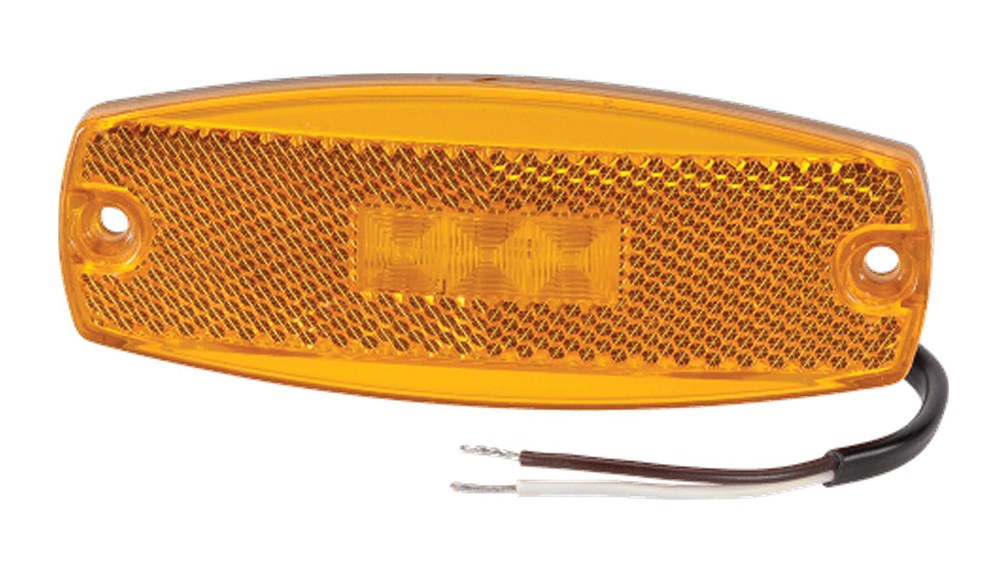

Narva 91700, model 17 LED side marker or external cabin marker lamp (Amber).
These ultra slim modern L.E.D markers can be flush mounted with a standard 13mm (1/2?) hole required for cable entry. The lamps have a total thickness of just 9.5mm and incorporate ?E? and ADR approved retro reflectors that negate the need for extra reflectors if fitted in accordance with ADR 13 installation requirements.
Input voltage 9-33 volts DC
Current draw: 0.10 amps
LEDs: Rated to 100,000 hours of L.E.
IP rating: IP66 and IP68

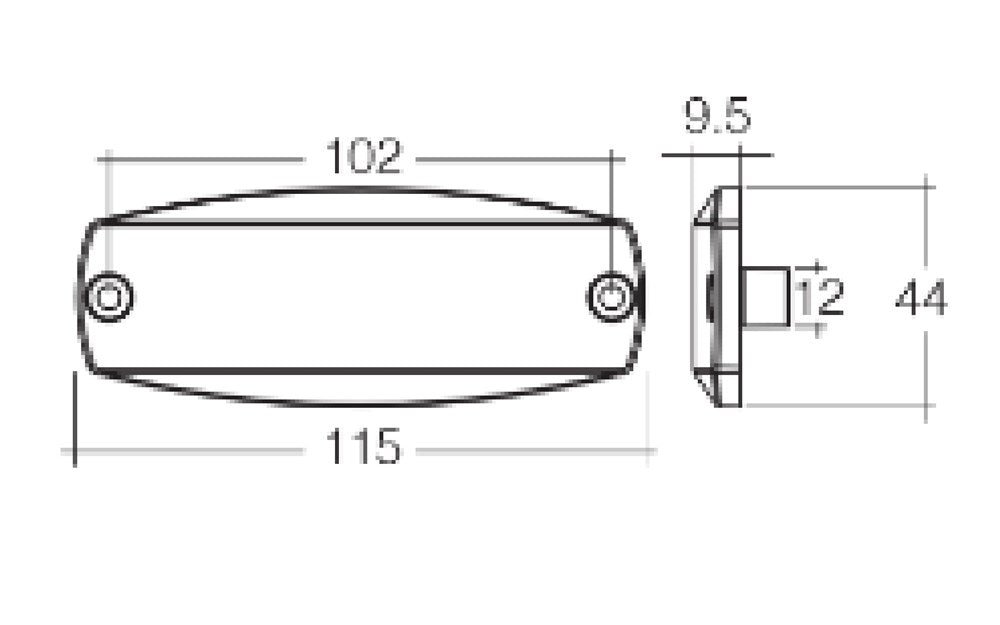

Size: 115mm x 44mm
Candela rating: 54
ADR: 45/00 43710, 47/00 IB-E9-02.6272, 74/00 SMI-E9-00.6272
