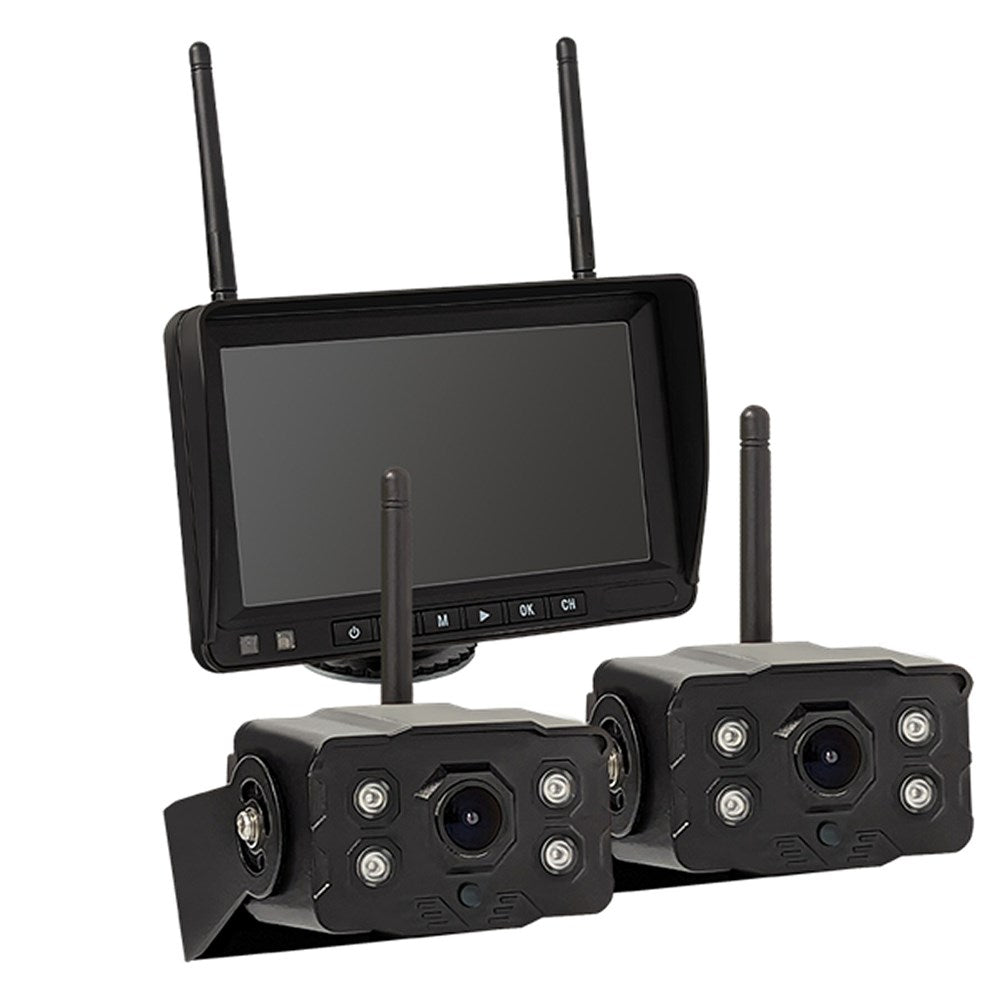

SPHERE WIRELESS DUAL REVERSE CAMERA AND MONITOR KIT

Specifications

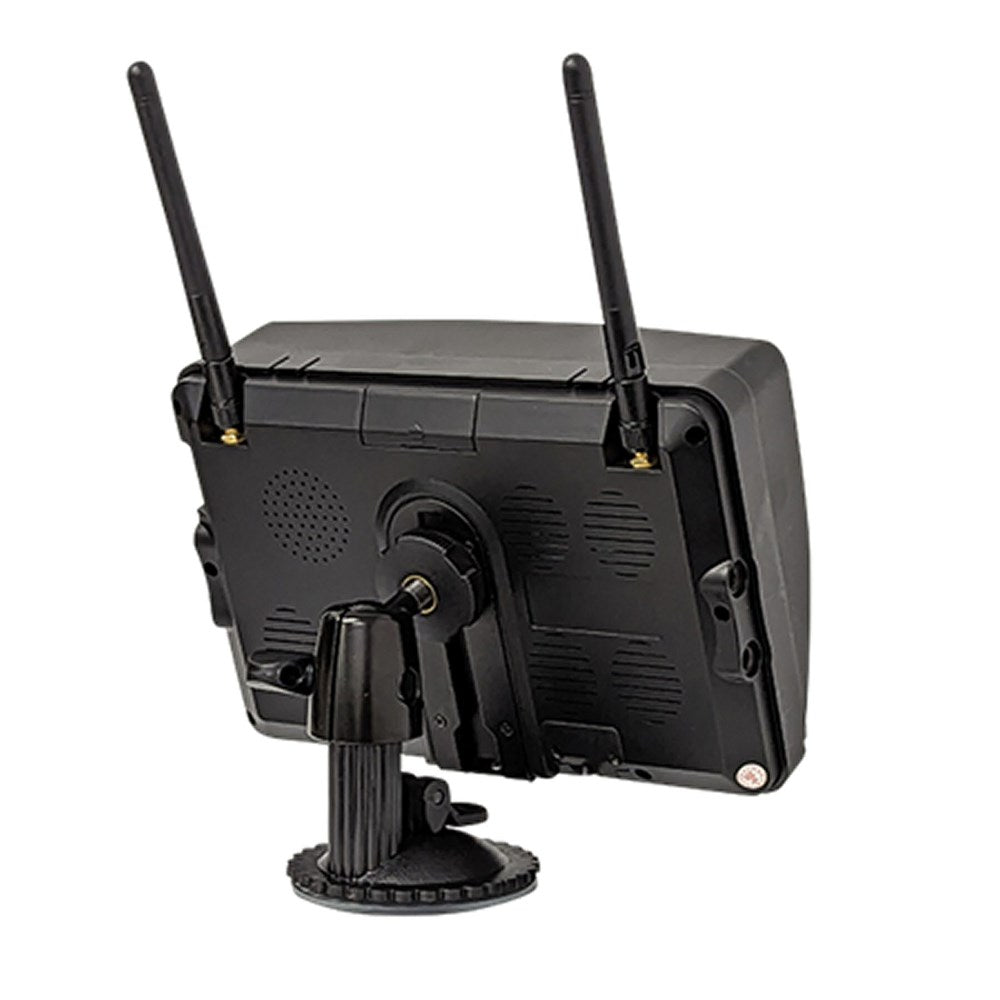

• Wireless Monitor Specifications:

  • 7-inch digital wireless monitor
  • DVR function ? Insert an SD card into the monitor and it will record the image from the paired cameras
  • Supports up to 4 cameras
  • Multiple Viewing Options - Single/Split Screen/Quad
  • Operating frequency: 2400-2483.5MHZ
  • Transmitted Power:18db
  • Resolution: 1280 (H) X 1024 (V)
  • Power Supply: DC12-36V
  • Power consumption: <500mA
  • Operating temperature: -20 ? C ~ 70? C
  • Storage temperature: -30 ? C ~ 80? C

• Wireless Camera Specifications

  • View Angle: 127? [H] 170? [D]
  • Waterproof Rating: IP69
  • Minimum illumination: 0.5lux
  • Power Supply: DC12V-36V
  • Operating frequency: 2400-2483.5MHZ
  • Operating Temperature -20 ? C ~ + 70? C / RH 95%Max
  • Storage Temperature -30? C ~ + 80? C / RH 95% Max
